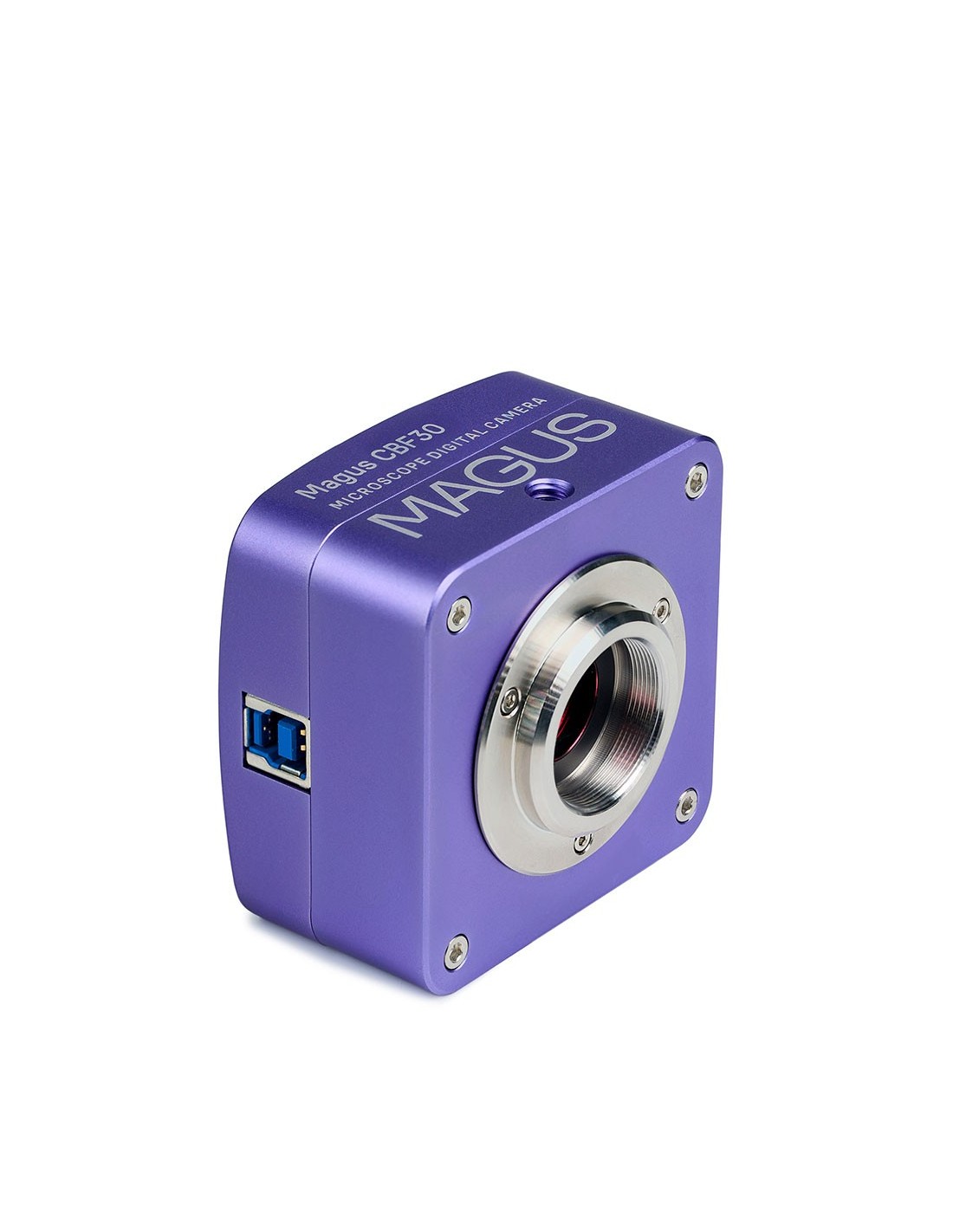

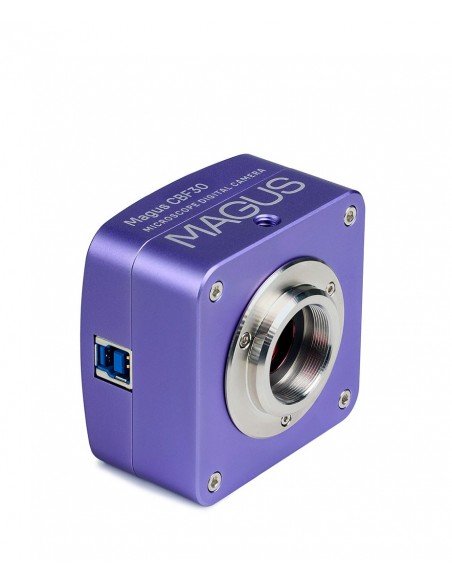

The MAGUS CBF30 digital camera allows you to take photographs and short videos through a microscope, edit the resulting files, organize presentations and perform linear and angular measurements of objects (after correct calibration).
The device is designed to work on microscopes using the brightfield method and 4x, 10x, 20x, and 40x objectives.
Graphical Features
The 6 .3 MP allows you to take photos and produce bright, detailed videos at a maximum resolution of 3072x2048 px. If necessary, the resolution can be reduced to 1536x1024 px. However, this will not affect the frame rate, which will remain at 59 fps, thus ensuring smooth frame transitions without stutter or lag.
Sensor

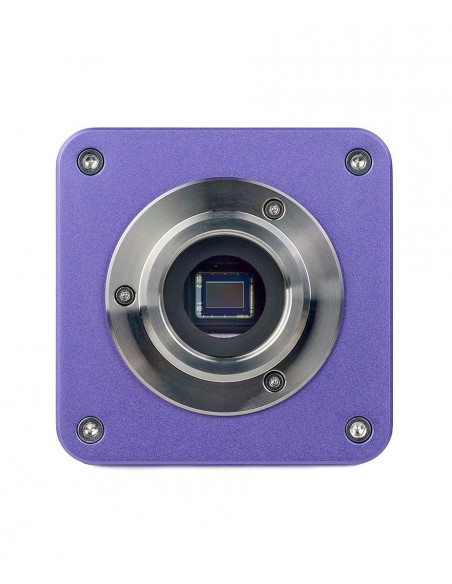

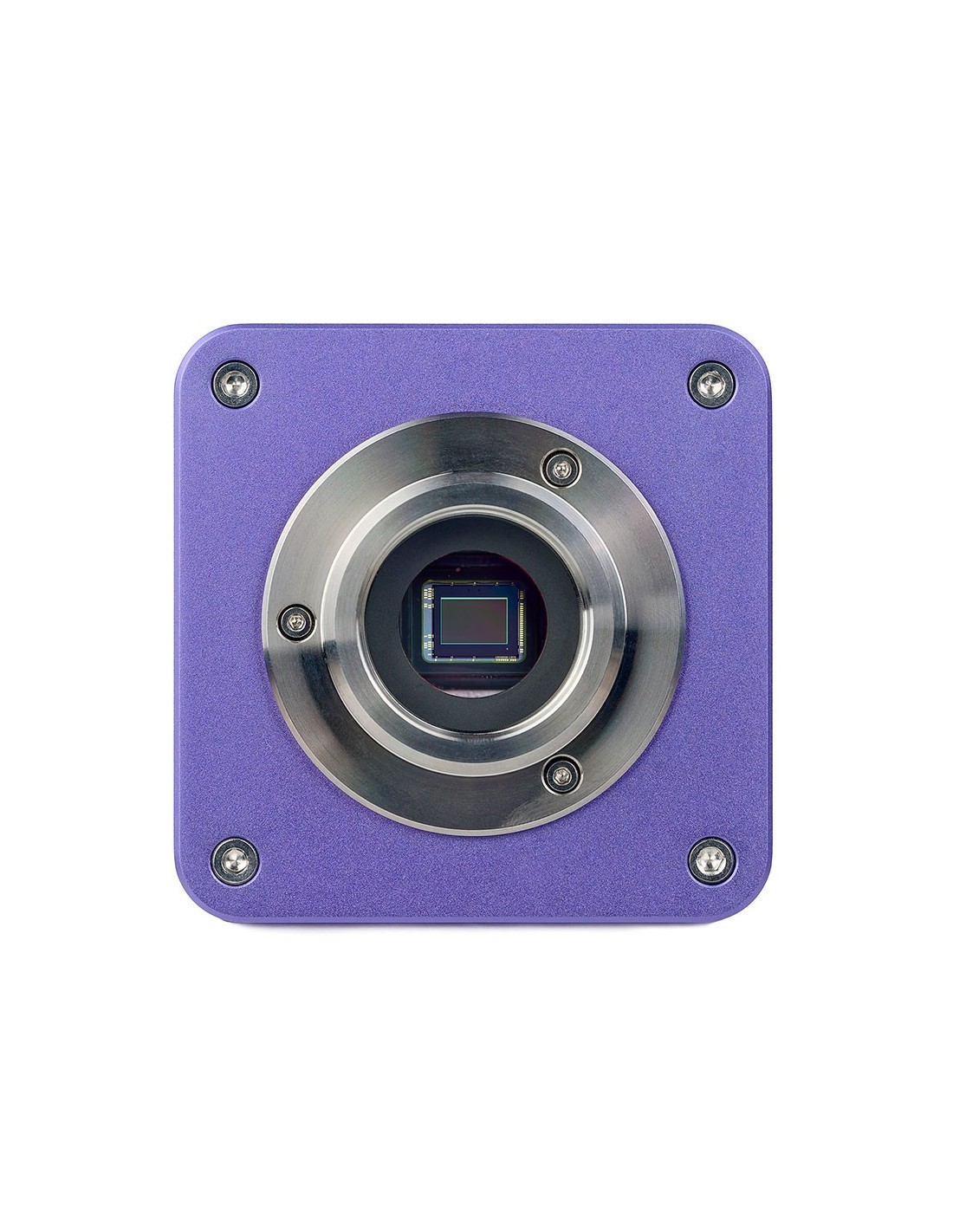

The Color back-illuminated SONY Exmor CMOS sensor allows you to use the camera even in low light conditions. The image will remain readable and bright. Using an adapter with 0.5x to 0.75x magnification will provide the clearest image possible, without distortion.
Additional Features

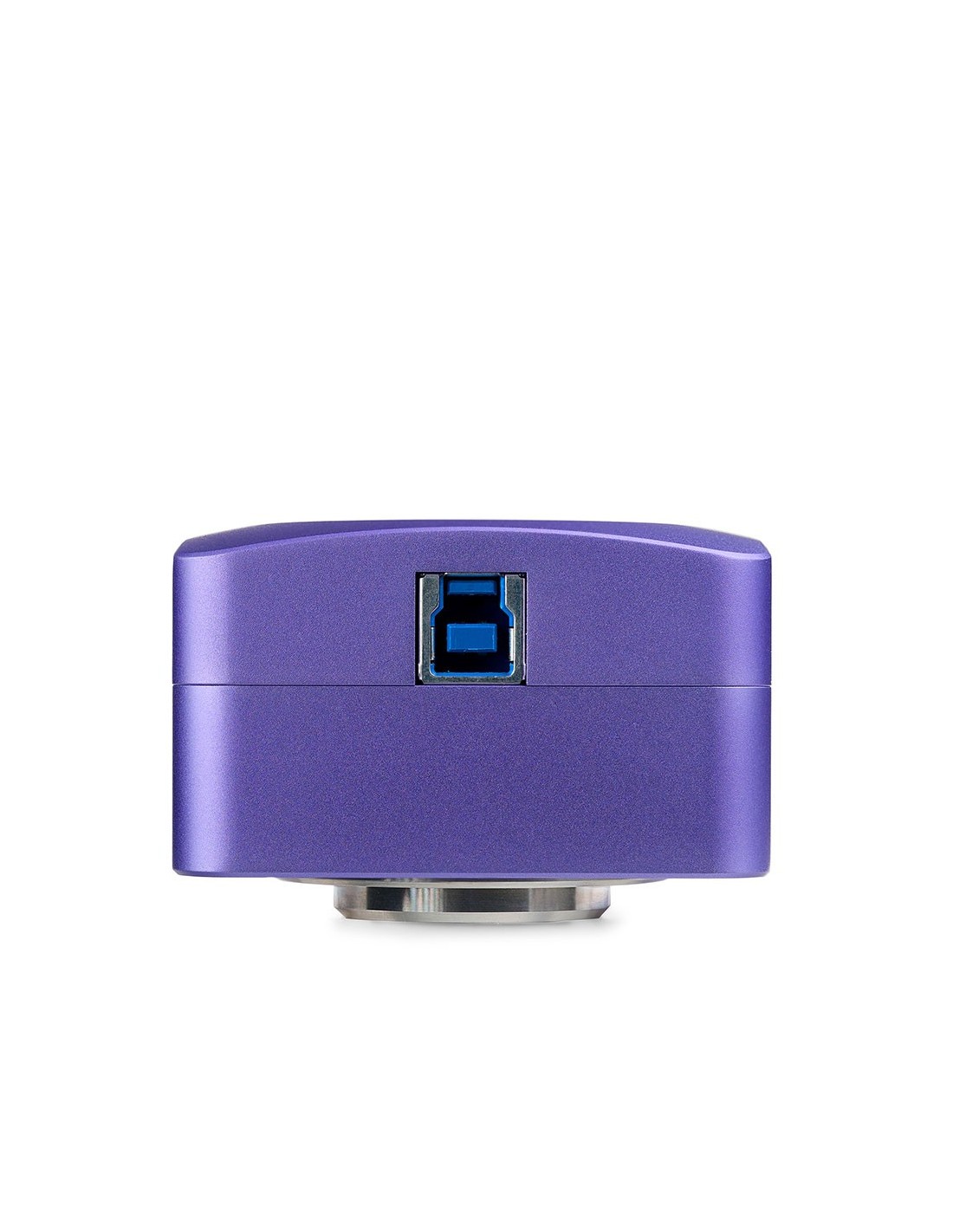

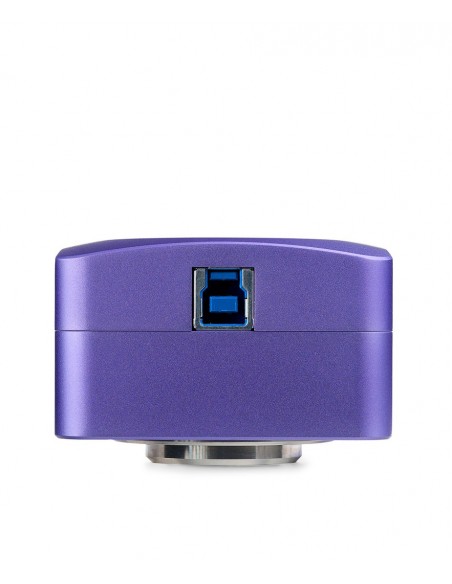

The MAGUS CBF30 camera uses a USB 3.0 interface, which means that data transfer occurs as quickly as possible without loss or delay.
The camera also has dedicated software which is used for photo and video shooting, editing videos, showing them on an external screen and organizing classroom demonstrations.
Installation
The camera can be mounted in the trinocular tube of the microscope using a C-pitch adapter. Installation in an eyepiece tube is also possible and requires a C-pitch adapter and an adapter ring for the tube diameter.
Key Features:
- Recommended for use with low-magnification lenses
- Light-sensitive sensor for clear images even in low-light conditions
- Frame rate of 59 fps , which is sufficient for observing moving objects or fast-moving processes
- The package includes software that fully ensures the functionality of all camera features and, consequently, a “quick start”
- Reliable USB 3.0 interface for high data transfer speeds
- Resolution adjustment so you can choose the option that best suits you at any given moment
The package contains:
- Digital camera
- USB cable
- Installation CD with drivers and software
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019260 |
| Package size (WxDxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | SONY Exmor CMOS |
| Color/monochrome | color |
| Megapixel | 6.3 |
| Maximum resolution, px | 3072x2048 |
| Sensor size | 1/1.8" (7.37x4.92 mm) |
| Pixel size, µm | 2.4x2.4 |
| Light sensitivity | 425 mV at 1/30 s |
| Signal-to-noise ratio | 0.15 mV at 1/30 s |
| Exposure time | 0.02 ms – 15 s |
| Video recording | yes |
| Frame rate, fps@resolution | 59@3072x2048, 59@1536x1024 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format |
| Video format |
| td> | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32-bit and 64-bit), Mac OS Software | MAGUS View |
| Mount type | C mount |
| Body | robust aluminum |
| Power supply | DC current, 5 V, from PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
