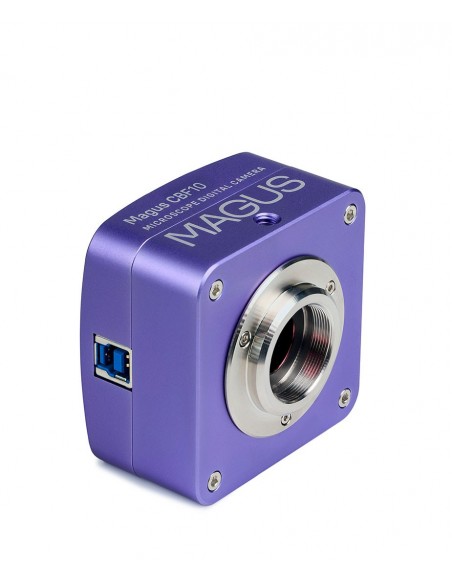

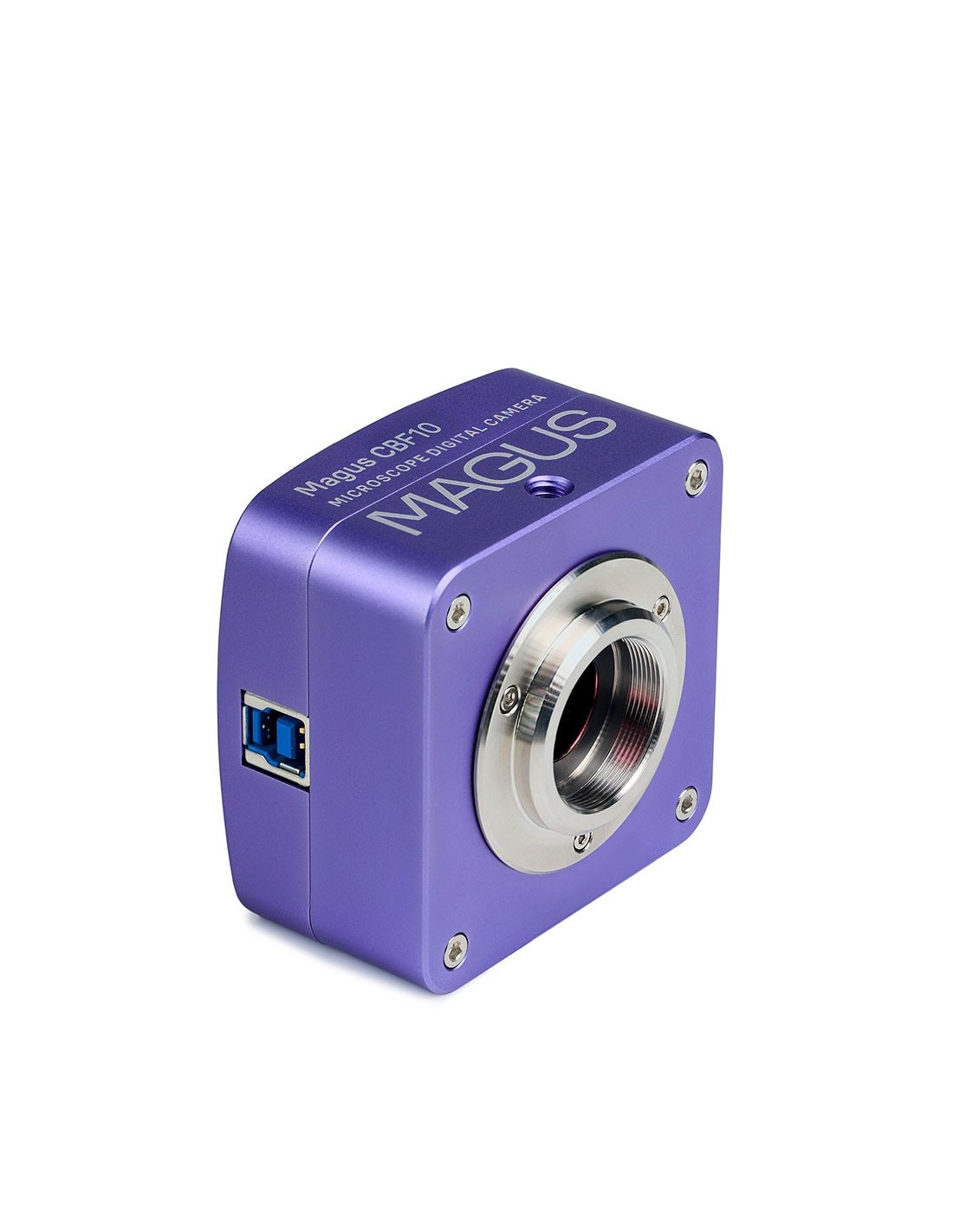

The MAGUS CBF10 digital camera is designed to work together with a microscope: taking photographs, recording videos and viewing images on an external screen. Its characteristics are more suitable for bright-field work on 4x and 10x flat-field microscope objectives and stereo microscopes.
Sensor

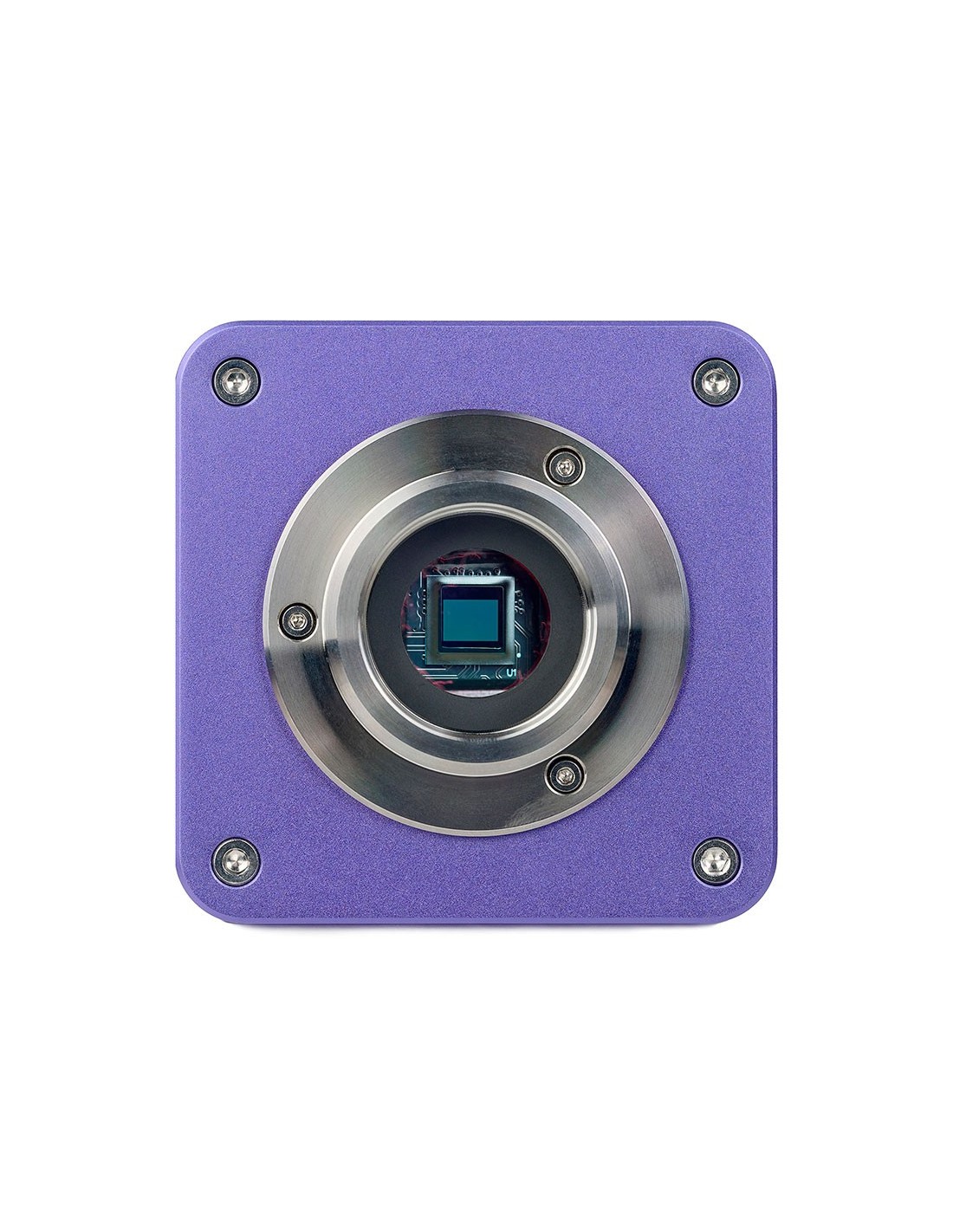

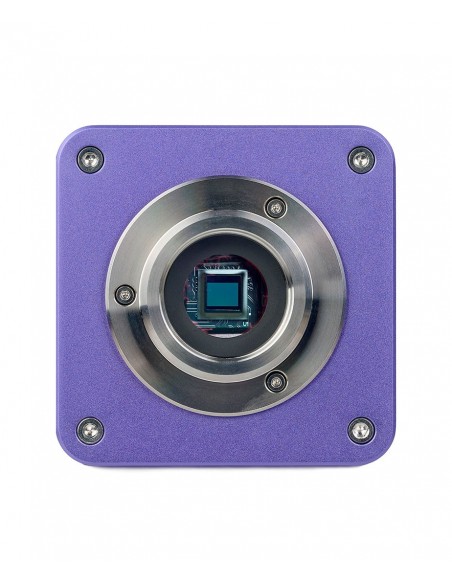

The MAGUS CBF10 camera It features an Aptina CMOS sensor with a light sensitivity of 0.62 mV/lux/s. You can achieve the maximum field of view without distortion by using an adapter with 0.4x to 0.6x magnification.
Recording photos and videos
The 18 MP sensor allows you to obtain a realistic and highly detailed image with a resolution of 4912x3684 px. In this mode, video is captured at 13.1 fps. You can increase the frame rate and, as a result, improve the smoothness of the video by reducing the resolution. Available options: 2456x1842 px (34.3 fps) and 1228x922 px (54.4 fps). In any of the selected modes, it is convenient to adjust the focus of the microscope. Modes with increased frame rates are suitable for studying moving objects and fast processes, as well as for presentations and demonstrations.
Interface

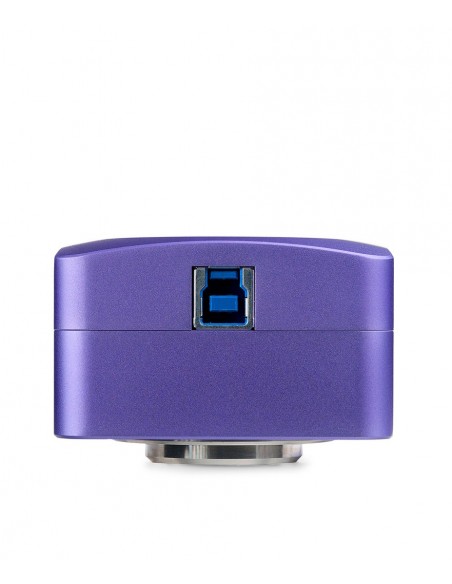

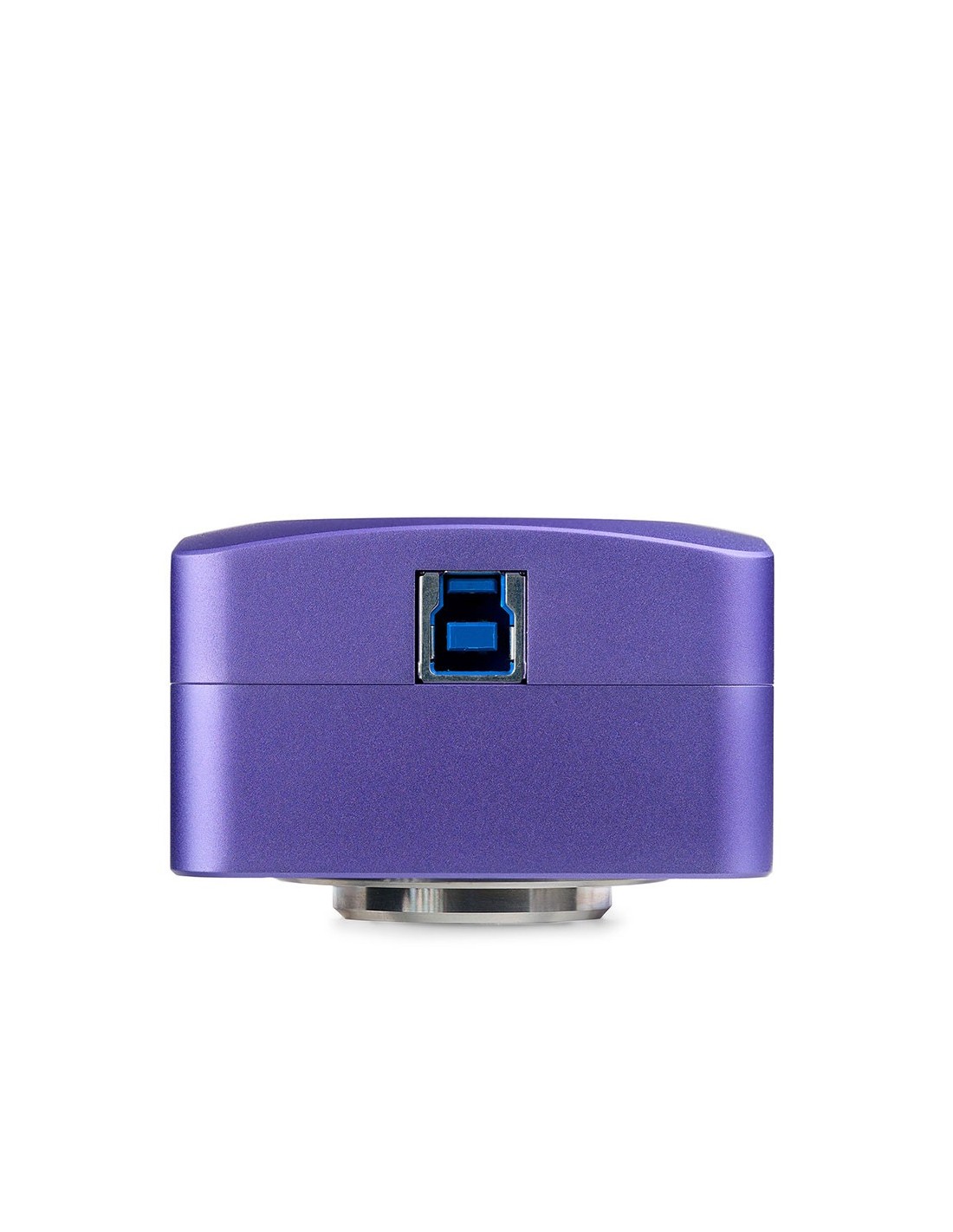

To connect to a computer a USB 3.0 interface is used. Data transfer is 10 times faster than the previous generation interface. The camera's fast performance makes it an excellent choice for professional laboratories, research and university education.
Software features
The MAGUS CBF10 camera includes a software CD . It is used for photography, video shooting, viewing images and editing them. After software calibration, linear and angular measurements can be made.
Installation
The camera can be installed in the eyepiece tube (instead of an eyepiece) or in a trinocular tube. C-mount adapters and adapter rings for the required mounting diameter are purchased separately.
Key Features:
- Aptina CMOS sensor with high light sensitivity
- 18 MP sensor resolution: highly detailed images on low magnification lenses
- Frame rate sufficient for focus adjustment: 13.1 fps with a 4912x3684 px resolution
- Simplify classroom demonstrations and observe moving objects by increasing the frame rate while decreasing the resolution; sample movement is visible without jerkiness
- USB 3.0 provides data transfer speeds 10 times faster than USB 2.0
- Software to create photos and videos as well as view and edit them in real time
- Linear and angular measurements
The package contains:
- Digital camera
- USB cable
- Installation CD with drivers
- User manual and warranty card
| Brand | MAGUS |
| Warranty | 5 лет |
| EAN | 5905555019253 |
| Package size (LxWxH) | 15x15x10 cm |
| Shipping weight | 0.6 kg |
| Sensor | Aptina CMOS |
| Color/monochrome | color |
| Megapixel | 18 |
| Maximum resolution, px | 4912x3684 |
| Sensor size | 1/2.3" (6.14x4.61 mm) |
| Pixel size, µm | 1.25x1.25 |
| Light sensitivity | 0, 62 mV/lux/s |
| Signal to noise ratio | 36.3 dB |
| Time exposure time | 0.1 ms – 2 s |
| Video recording | yes |
| Frame rate, fps@resolution | 54.4@1228x922, 34.3@2456x1842, 13.1@4912x3684 |
| Range dynamic, dB | 65.8 |
| Installation location | trinocular tube, optical tube instead of eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380-650 (built-in IR filter) |
| Shutter type | ERS (electronic curtain shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure control |
| Output | USB 3.0, 5 Gb/s |
| System requirements | Windows 8/10/11 (32 bit and 64 bit), Mac OS , Linux, up to 2.8 GHz Intel Core 2 or later, minimum 2 GB RAM, USB 3.0 port, CD-ROM, 17" or larger |
| Software | MAGUS View |
| Mount type | C-mount |
| Body | robust aluminium |
| Power supply | DC current, 5 V, from PC USB port |
| Operating temperature range, °C | -10 — 50 |
| Humidity operating range, % | 30 — 80 |
