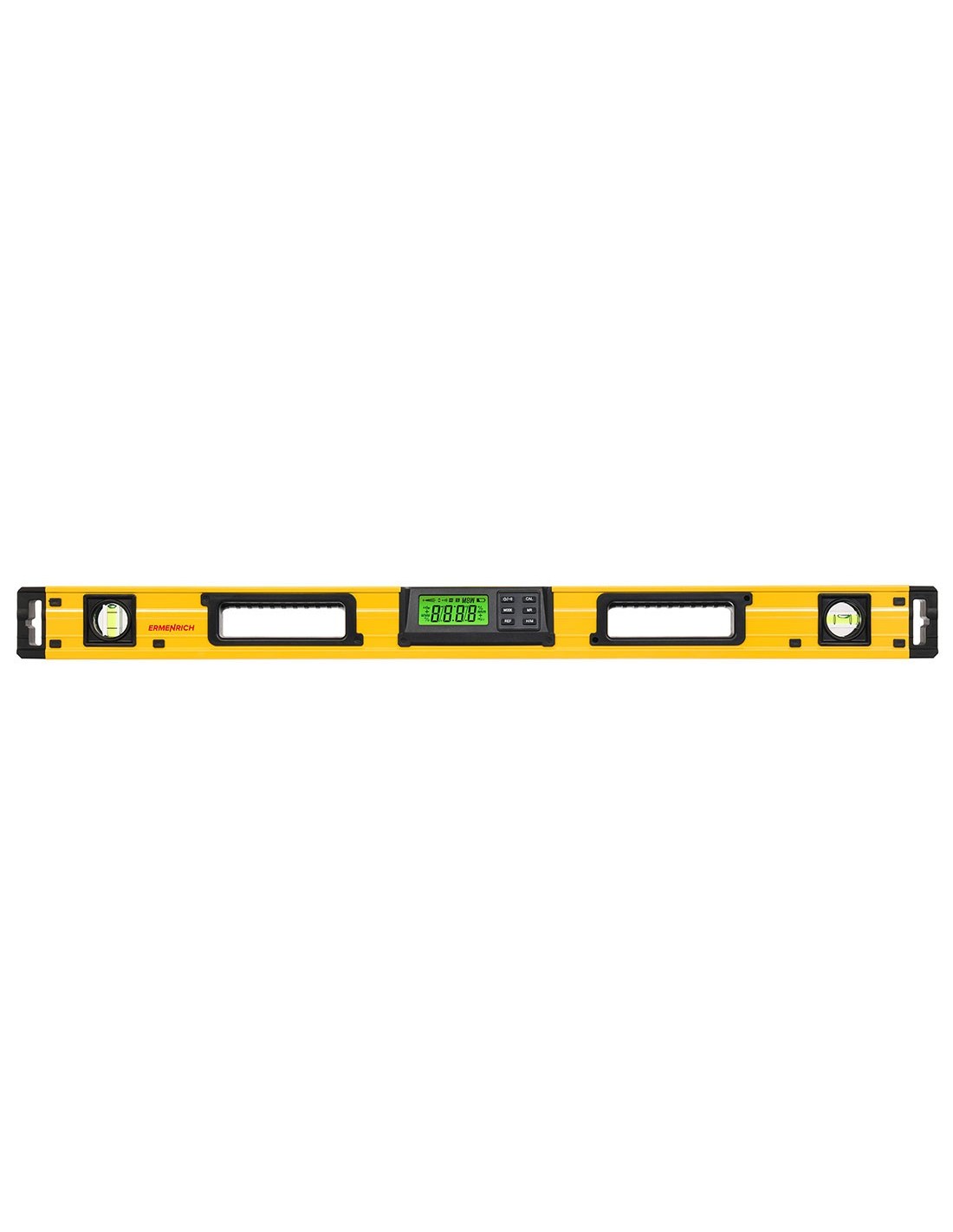

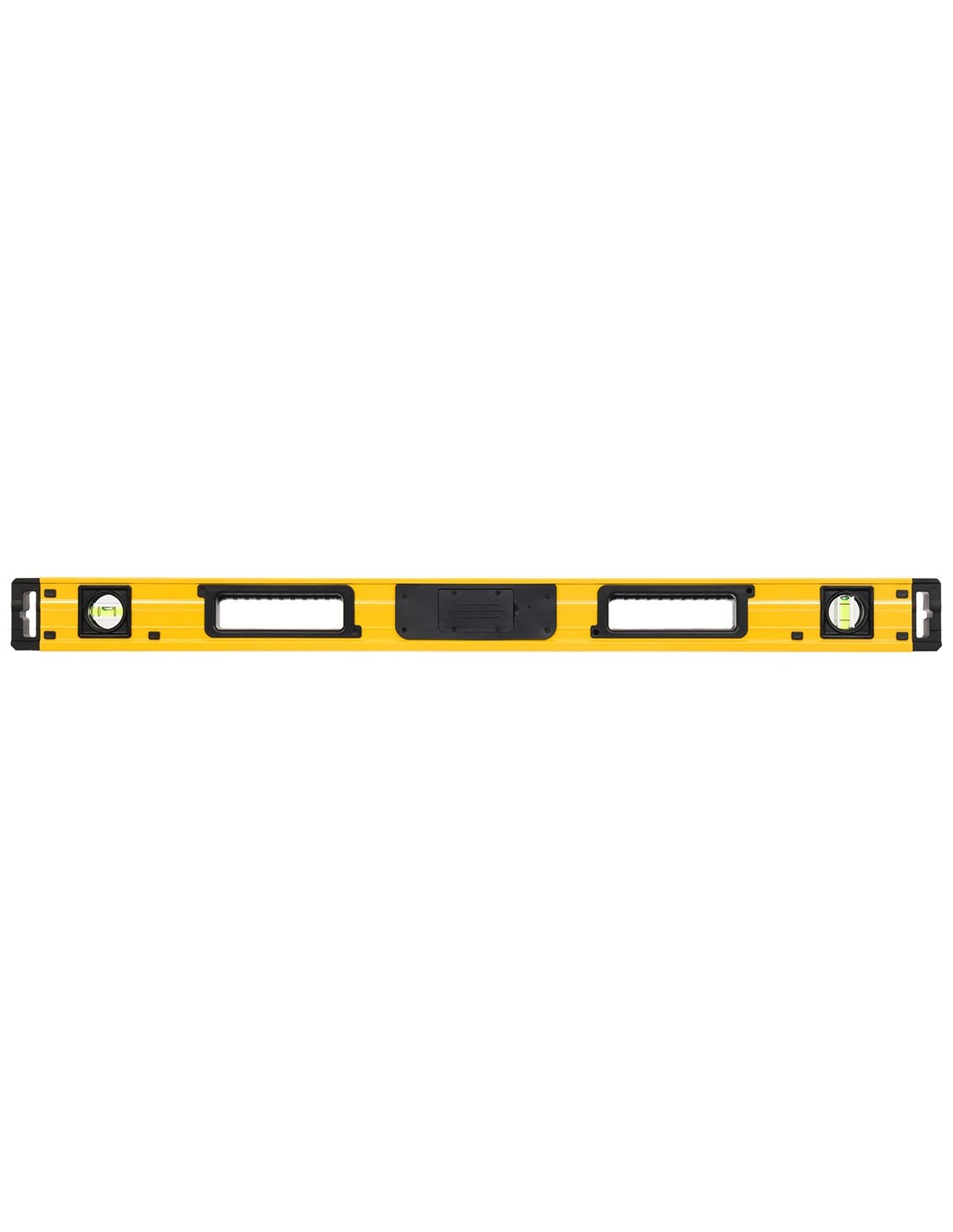

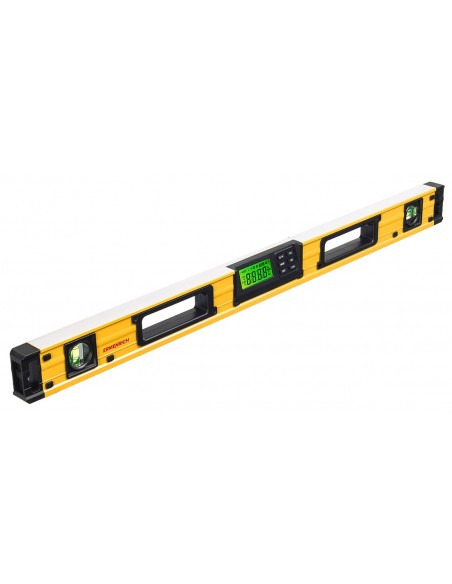

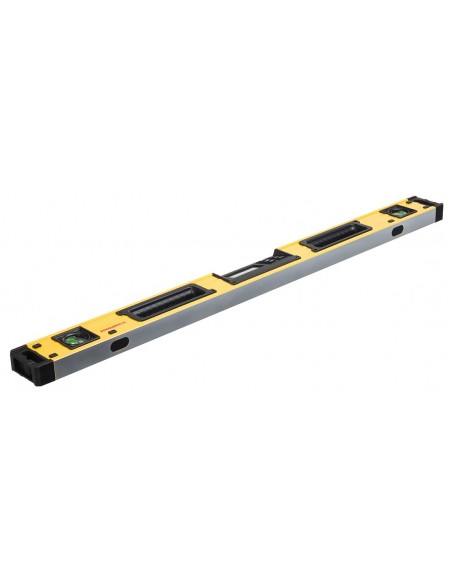

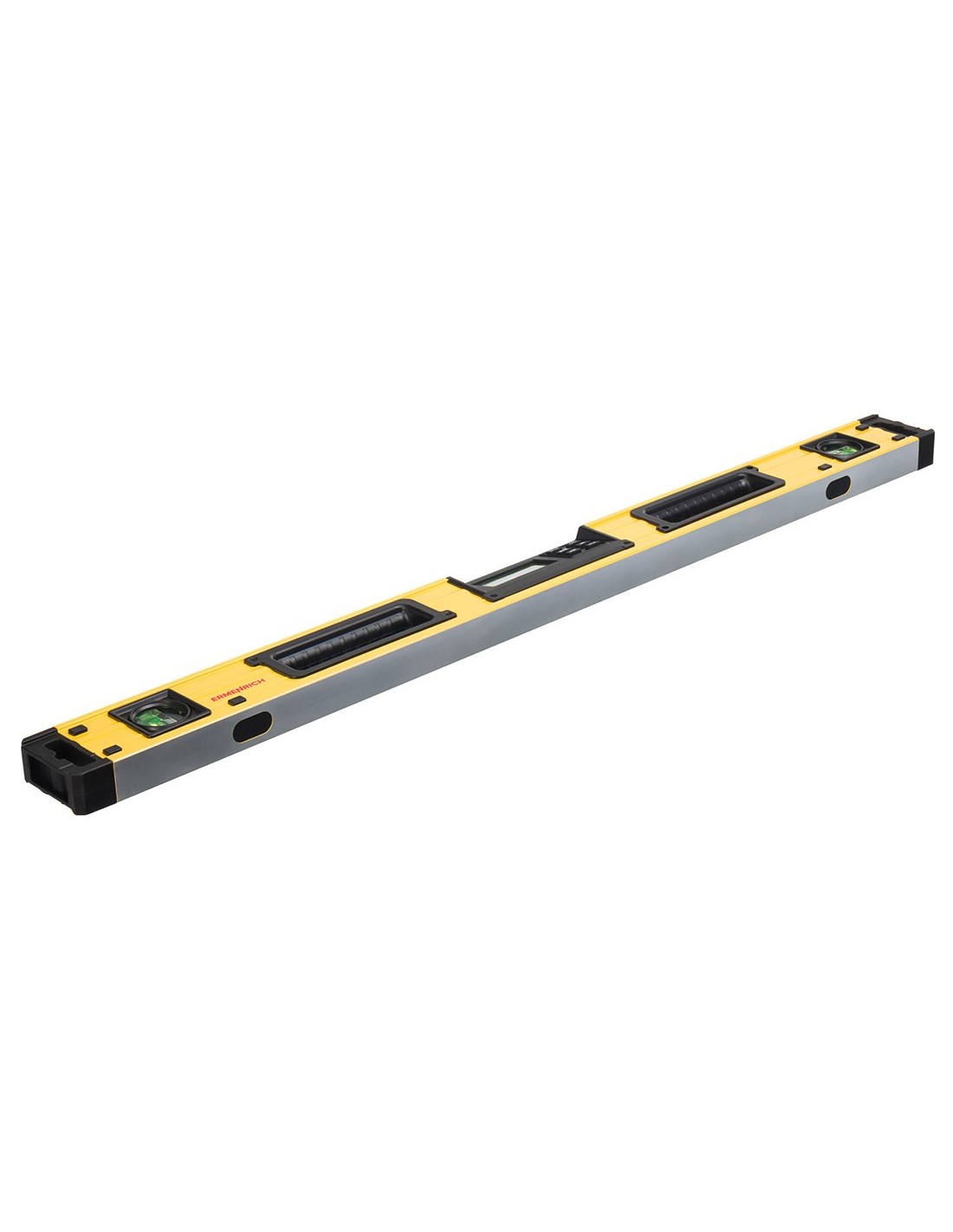

The Ermenrich Verk LY80 is a digital level for the accurate measurement of angles and alignments. It is suitable for a wide range of applications, including construction and repair work, cutting metal and wood, installing machinery and mechanisms, etc. It is also suitable for home use: installing furniture, placing shelves, wall units, curtain rods, etc. The angle gauge provides accurate measurements within a range of 0–360° (4x90°). This meter is equipped with zero setting function and hold function.
The LCD screen shows all measured values, and there are various measurement units to choose from. The dust-proof body of the Ermenrich Verk LY80 features a magnetic base and a bright color, which minimizes the risk of losing the instrument on a construction site. To save batteries (AAA type, 2 pcs.), there is an automatic switch-off function, which intervenes after 3 minutes of inactivity. There is also a low battery indicator. The 2 bubble vials make setup work easy and allow the instrument to be used even when the batteries are empty.
Key features:
- High accuracy (±0.1° vertical and horizontal, for other angles: ±0.2°)
- Selection of measurement unit; hold function and zero setting function
- Metal and ABS plastic body, 2 shaped handles for carrying
- Battery powered; automatic shut-off function
| Brand | Ermenrich |
| Warranty | 5 лет |
| EAN | 5905555021423 |
| Package size (LxWxH) | 5x82x8 cm |
| Shipping weight | 0.9 kg |
| Type of level | digital, bubble |
| Accuracy | ±0.1° at 0° and 90°; ±0.2° for the rest |
| Units of measurement | mm, m, ft, in, degrees, percentage |
| Measurement range, m | 0 — 360 |
| LCD screen | yes |
| Maximum resolution | 0.05° |
| Calibration | manual |
| Hold function (fixes measurement) | yes |
| Zero setting function | yes |
| Magnetic base | yes |
| Power supply | 2 AAA batteries ,1.5 V (not included) |
| Visual Fault Locator (VFL) | yes |
| Automatic shutdown | 3 min |
| IP protection rating against water and dust | IP54, partial protection against dust, protection from splashes |
| Body | aluminum, high-strength ABS plastic, thermoplastic rubber |
| Temperature range operating temperature, °C | 0 — 40 |
| Distance, mm | 800 |
| Extra elements | warning acoustic signal, integrated spirit level – 2 pcs. |
