CONSCIOUS OF TRADITION
The traditional form of observation. The Habicht binoculars are the classic optical system that has been tried and tested and continually developed for generations. Their light-alloy housing and extremely sturdy yet lightweight design make them particularly suitable for taking on excursions.

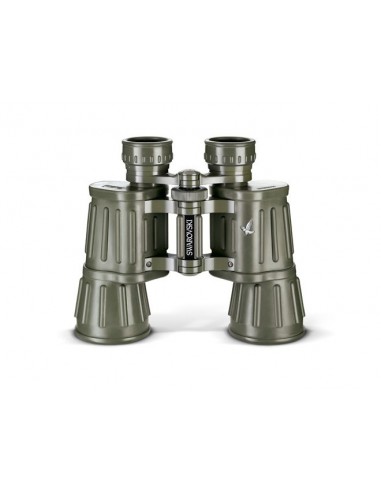

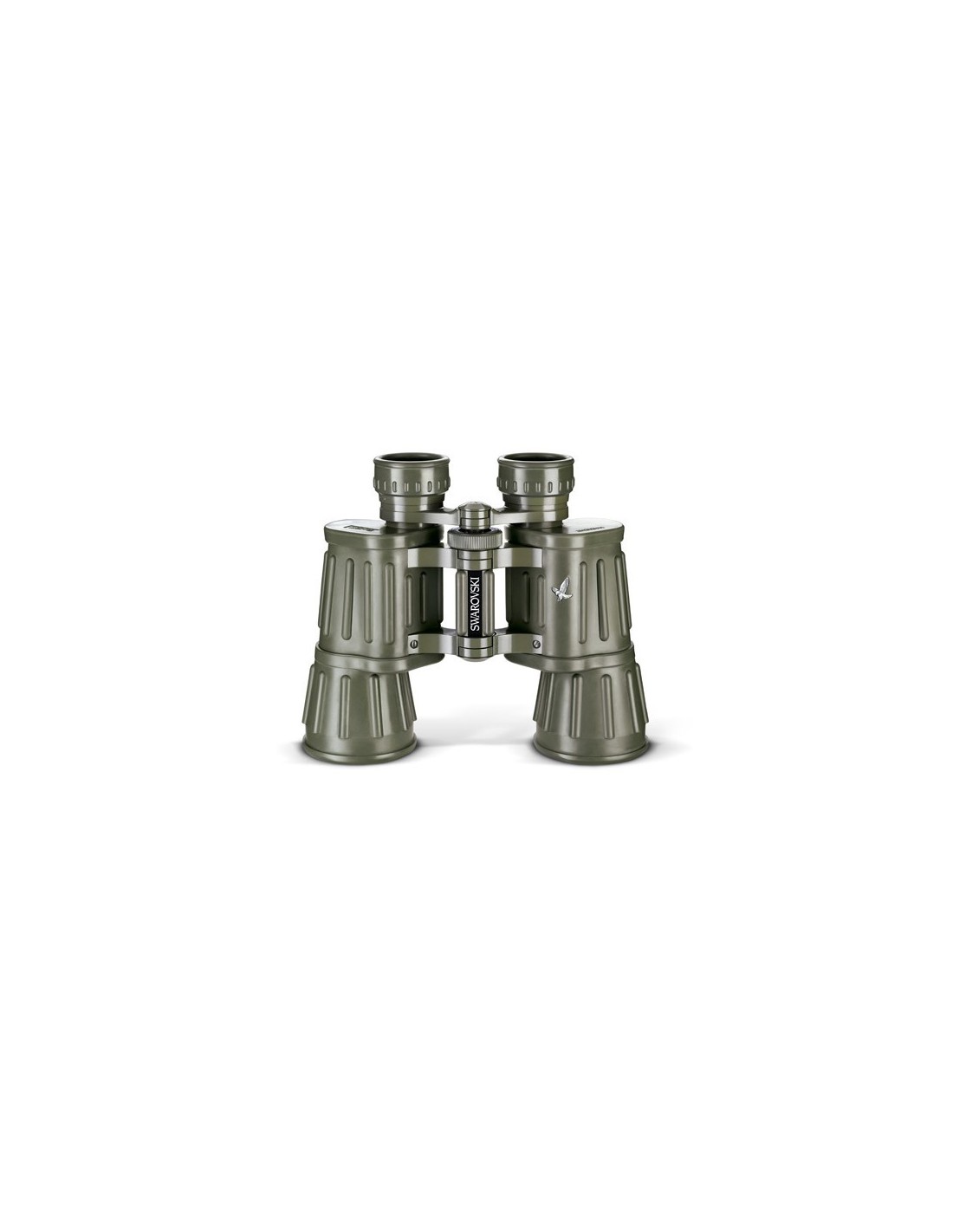

Habicht 10x40 W GA
As a conventional, lightweight pair of binoculars, the Habicht model offers impressive technical specifications. Even the use of the Porro design reflected the desire for greater detail recognition, which is provided with the 10x magnification. The rubber armoring is the number one choice for everyday use.
Included
Bag, eyepiece cover, carrying strap leather
WARRANCY
10 Years
Technical Data
Magnification
10x
Effective objective lens diameter (mm)
40
Exit pupil diameter (mm)
4
Exit pupil distance (eye relief) (mm)
13
Field of view (ft/1000 yds / m/1000 m)
324 / 108
Field of view (degrees)
6.2
Field of view for eyeglass wearers (degrees)
5.2
Field of view, apparent (degrees)
60
Shortest focusing distance (ft / m)
13 / 4
Dioptric compensation (dpt)
± 5
Diopter correction at ∞ (dpt)
5
Light transmission (%)
96
Pupil distance (in / mm)
2.2-2.83 / 56-72
Twilight factor acc. to ISO 14132-1
20
Technical Data
Length approx. (in / mm)*
6 / 154
Width approx. (in / mm)**
6.9 / 175
Height approx. (in / mm)**
2.3 / 59
Weight approx. (oz / g)
27.9 / 790
Functional temperature
-13 °F to +131 °F (-25 °C / +55 °C)
Storage temperature
-22 °F to +158 °F (-30 °C / +70 °C)
Submersion tightness
13 ft / 4 m water depth (inert gas filling)
* Value with eyecups twisted in
_
** Dimensions at a pupil distance of 2.5 in / 64 mm
