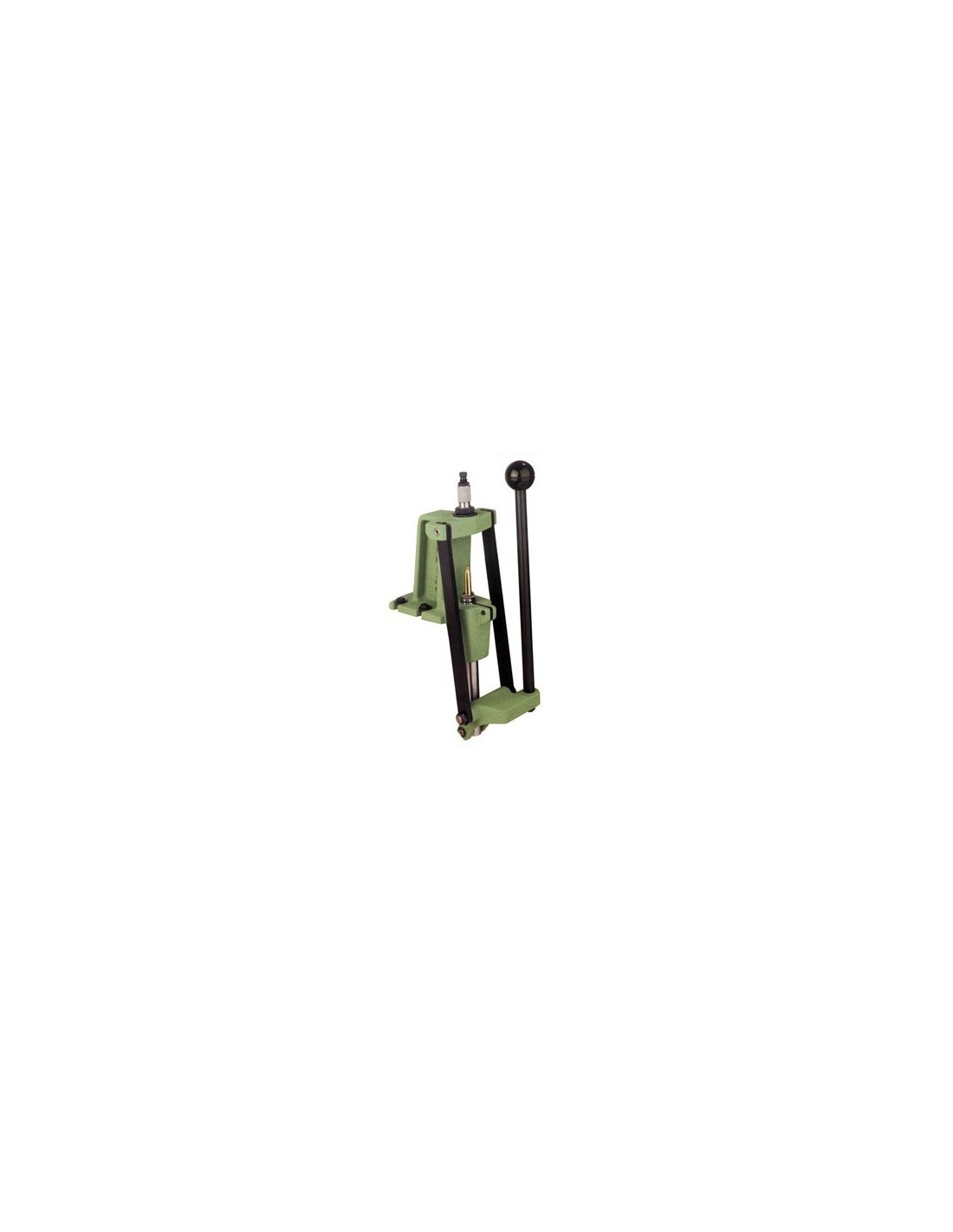

The UltraMag Reloading Press - REDDING

The Ultramag reloading press. “The biggest and strongest press available for the hardest and toughest reloading operations…”. As soon as you see it, you immediately notice the peculiarity that distinguishes the UltraMag from all the other presses: the unique position
and innovative of its lever-piston system. Unlike the others
reloading presses which possess the piston connection part
with the lower half of the press, the lever linkage system
ULTRAMAG is connected to the upper part of the frame. This configuration allows the shooter to develop, literally, tons of
pressure without worrying about frame deflection or misalignment. The UltraMag press is equipped with a
wide frame opening measuring approximately 4-3/4”. Also the piston
has a useful stroke of 4-1/8”. These two features make
ideal for loading large cartridges such as
the 'Old Sharps Buffalo Cartridges' and the 'British Nitro-Express Round'. The
lever-piston system has a unique length of its kind
which allows to obtain mechanical advantages that no other press
on the market owns. This makes any one a 'no-brainer'
recharge operation. CHARACTERISTICS:
• The frame is made of a high strength cast iron alloy, for
ensure long life and wear resistance.
• Four mounting holes ensure excellent rigidity and stability.
• An adjustable steel bushing is included, compatible with all
dies with standard 7/8”-14 thread. This bushing is removable
whenever it is necessary to use oversized dies.
• Removable bushing frame is also compatible with dies with
1-1/4”-12 thread.
• The primer lever moves automatically according to the movement of the piston.
• “Spent Primer Collection System” = Innovative collection system
of the triggers.
• All connecting pins are heat treated and machined with
extreme precision.
